PRECISION CARBIDE MACHINING
Custom Tungsten
Carbide Parts
Machined to Your Drawings
Precision carbide components, wear parts, punches, dies, bushings, and tooling manufactured to your drawings through grinding, EDM, CNC machining, and strict dimensional control. Goray Carbide manufactures custom precision carbide components, wear parts, punches, dies, bushings, and tooling to your drawings. From prototypes to production, we deliver reliable results through precision grinding, EDM, CNC machining, and strict dimensional control by CMM and optical measuring projector
Ø0.3–300 mm
Diameter Range
Up to
500 mm
Part Length
As Tight as
±0.002 mm
Tolerance Capability
Down to
Ra 0.05 μm
Surface Finish
20+
Years of Excellence
In Custom Carbide Machining
Engineered Precision
Custom Tungsten Carbide Solutions Engineered to Your Exact Specifications
Standard tooling often falls short in demanding industrial environments. When facing severe wear, high impact, or extreme temperatures, custom tungsten carbide tooling provides the necessary durability. With a material hardness ranging from 85 to 95 HRA, tungsten carbide significantly outperforms standard tool steels.
Goray Carbide focus entirely on the precision machining of non-standard carbide parts based on your engineering drawings and samples. By employing advanced diamond grinding and wire EDM processes, we shape ultra-hard carbide blanks into precision components ready for deployment.
- Custom Sizes & Complex Shapes
- High Precision Tolerance Control
- Wide Range of Carbide Grades
- 100% True to Customer Drawings
Our Custom Tungsten Carbide Parts
Engineered to exact drawing specifications for specialized industrial applications.

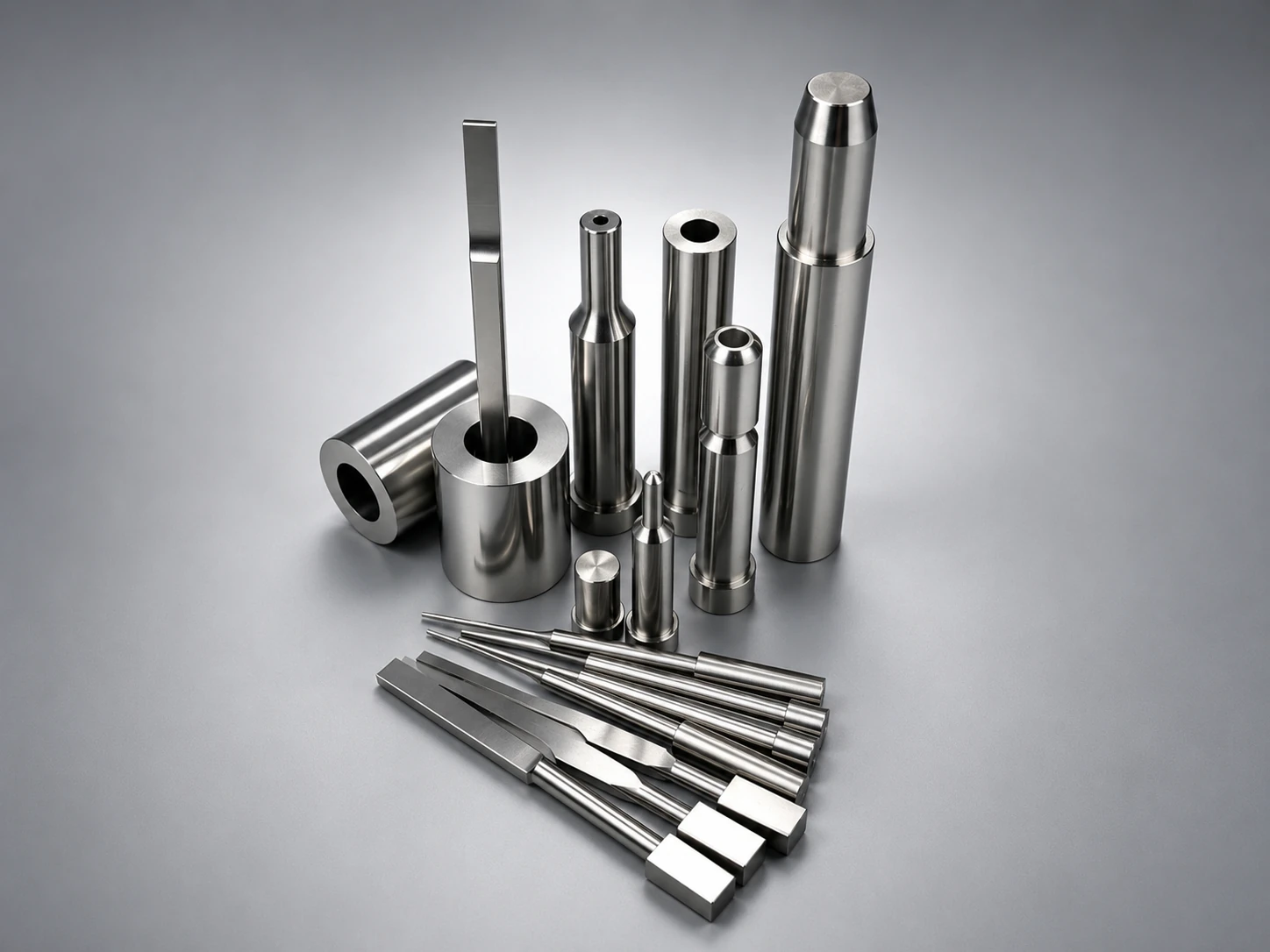

Custom Carbide Punches & Dies
- Tungsten Carbide Punches
- Carbide Punch Pins
- Tungsten Carbide Dies
- Carbide Die Inserts
- Carbide Stamping Dies
Application:
For stamping manufacturers requiring stable forming performance, Goray produces custom tungsten carbide punches with precision grinding processes to maintain tight dimensional tolerances (±0.005mm) for repeated production cycles.
Carbide Bushings & Sleeves
- Tungsten Carbide Bushings
- Carbide Sleeves
- Carbide Wear Sleeves
- Carbide Guide Bushings
- Carbide Shaft Sleeves
Application:
Engineered for rotary equipment operating in abrasive environments. We utilize precise OD/ID grinding to ensure perfect concentricity, reducing vibration and extending the lifespan of critical shaft assemblies.

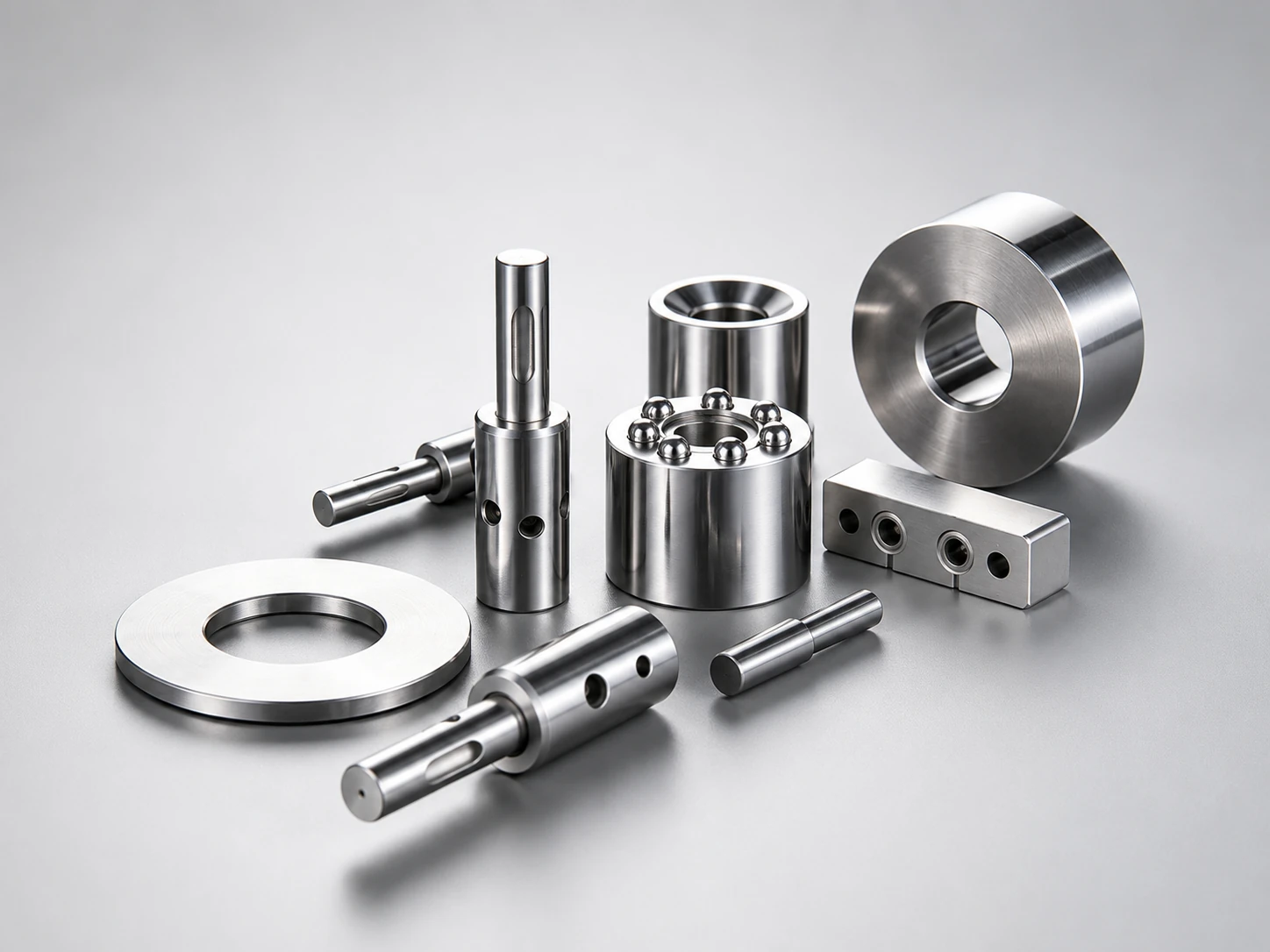

Custom Carbide Wear Parts
- Tungsten Carbide Wear Parts
- Carbide Rings
- Carbide Seal Rings
- Carbide Nozzles
- Carbide Wear Plates
Application:
Designed for fluid handling and mechanical systems facing severe abrasion. By selecting optimal carbide grades (e.g., YG8 or YG15), we manufacture wear parts that drastically minimize downtime and maintenance costs.
Precision Carbide Components
- Custom Tungsten Carbide Parts
- Carbide Pins
- Carbide Pin Gauges
- Carbide Plug Gauges
- Carbide Ring Gauges
Application:
Manufactured for automation and measurement equipment demanding exact positioning. We achieve up to ±0.002mm precision on gauges and locating pins, ensuring reliable quality control for your production lines.

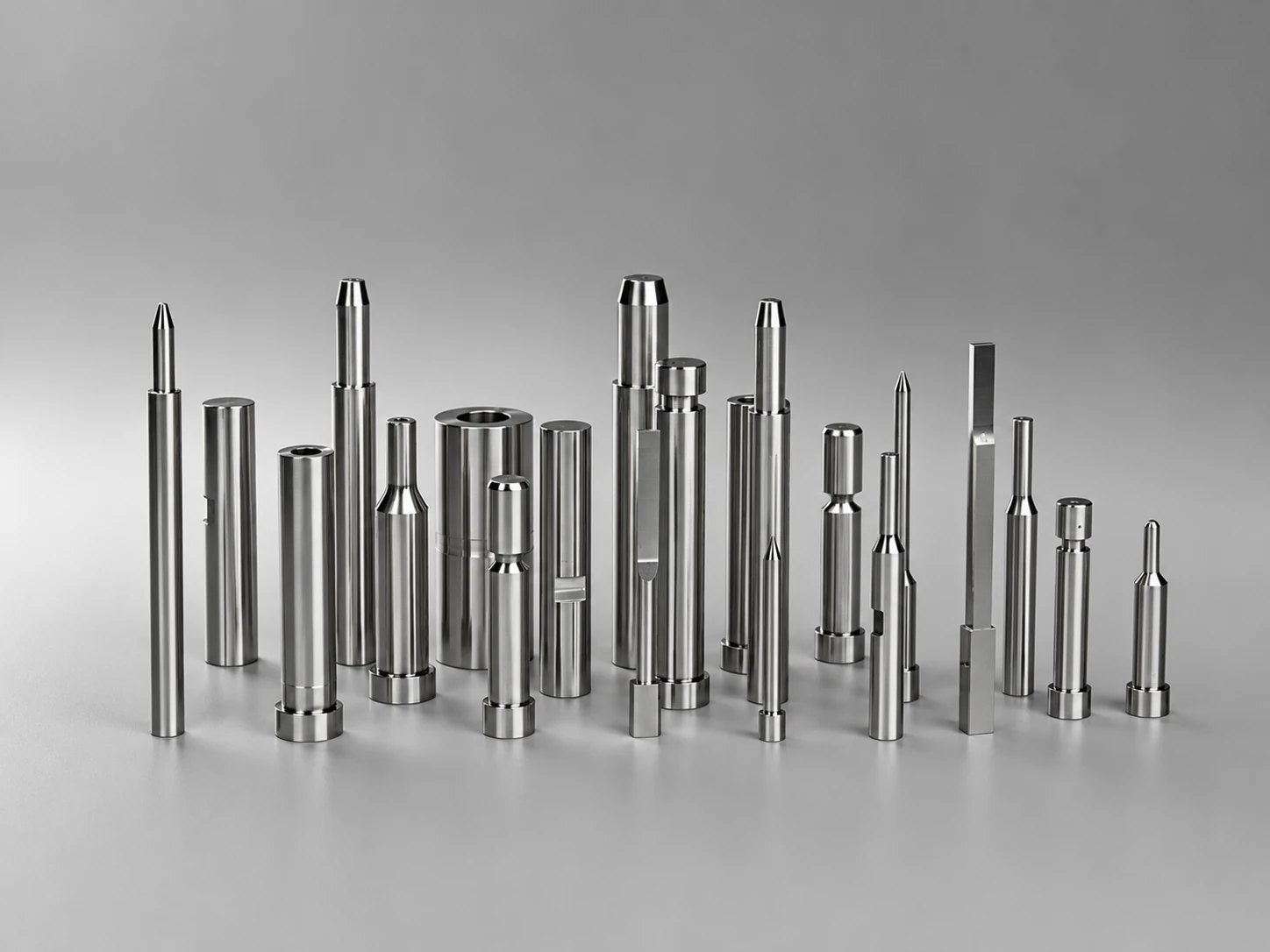

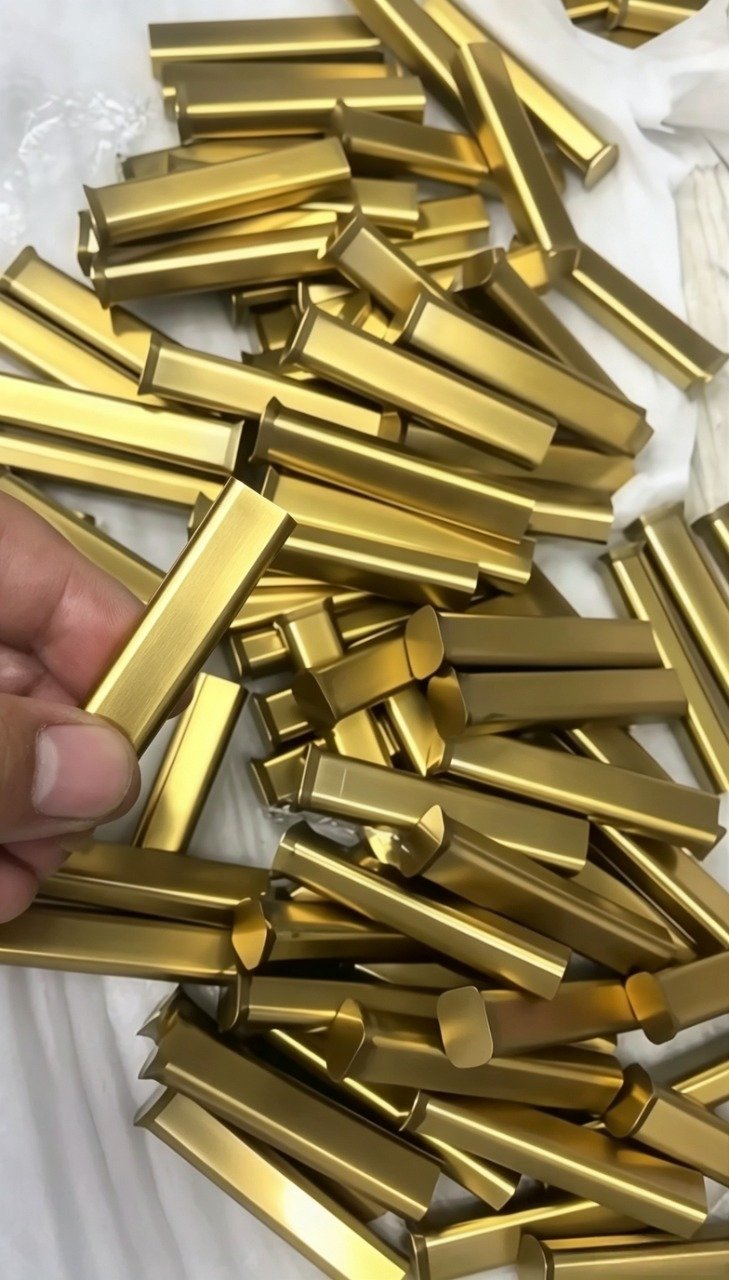

Carbide Mold Components
- Carbide Core Pins
- Carbide Ejector Pins
- Carbide Mold Inserts
- Carbide Cavity Inserts
- Carbide Locating Pins
Application:
Produced for injection molding facilities to ensure consistent cavity dimensions. Using wire EDM and centerless grinding, we machine complex mold inserts that resist thermal shock and abrasive resins.
Custom Carbide Parts
- Custom Tungsten Carbide Machining
- Carbide Forming Inserts
- Carbide Cutting Blades
- wire EDM Carbide Parts
Application: Our custom tungsten carbide parts are widely used in industries where extreme wear resistance, high precision, and long service life are required. From precision tooling and wear components to specialized industrial equipment
In-House Custom Precision Carbide Machining
Precision carbide machining starts with control. At Goray Carbide, all critical operations — including CNC machining, wire EDM, OD/ID grinding, centerless grinding, jig grinding, and precision inspection by CMM and cavity machining — are performed in-house using our own advanced equipment.
We focus on manufacturing custom tungsten carbide parts with tight dimensional accuracy, complex geometries, and demanding wear-resistance requirements. Whether for carbide punches, dies, wear components, mold parts, or precision tooling, our team delivers machining solutions tailored to each customer's application.
No outsourcing of critical processes. No compromise on precision. Just reliable carbide machining built around your requirements.
Precision Carbide Machining Capabilities
Grinding, Wire EDM, CNC machining and precision finishing for complex carbide parts manufactured according to customer drawings.
01 Precision Carbide Grinding
Includes:
OD Grinding · ID Grinding · Centerless Grinding · Profile Grinding.Surface Grinding · Jig Grinding
Used for:
Carbide punches, bushings, sleeves and precision components requiring controlled diameter and concentricity.
Capability:
Precision grinding achieves tolerances down to ±0.002 mm for critical carbide components.
02 Wire EDM Machining
Includes:
Complex Profiles · Narrow Slots · Precision Contours
Used for:
Custom carbide tooling, stamping dies, and intricate internal shapes impossible to reach with rotary tools.
Capability:
Precision Wire EDM machining achieves complex profiles, narrow slots, and tight tolerances for difficult-to-machine carbide components.

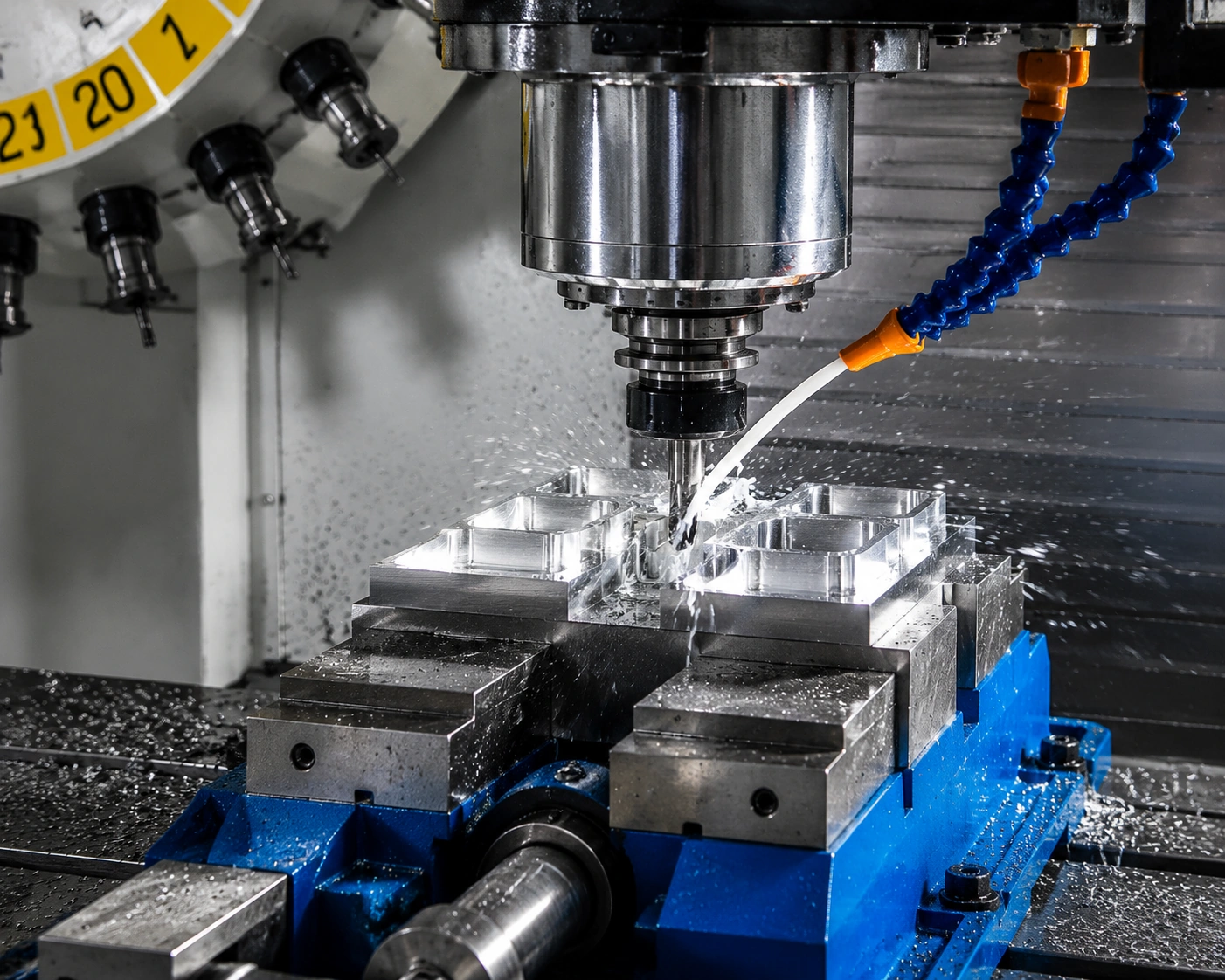

03 CNC Precision Machining
Includes:
CNC Milling · CNC Turning · Prototype Machining
Used for:
Machining of pre-machined carbide blanks, tooling components, and precision metal fixtures.
Capability:
Multi-axis CNC machining supports complex features, prototypes, and precision tooling components.
04Precision Surface Grinding
Includes:
Flat Grinding · Thickness Control · Parallelism Control · Precision Face Grinding
Used for:
Carbide plates, wear blocks, mold inserts, die components and rectangular precision parts.
Capability:
Precision surface grinding achieves tight thickness tolerances, flatness, parallelism and consistent surface finishes on carbide plates, inserts and wear components.
05CNC Drilling & Tapping
Includes:
Precision Drilling · Reaming · Counterboring · Countersinking · Rigid Tapping · Thread Milling
Used for:
Pre-machined carbide blanks, carbide-steel parts, tool holders and fixtures requiring accurate holes and internal threads.
Capability:
Accurate control of hole position, diameter, depth, thread pitch and alignment for through holes, blind holes and threaded features.
06 Cylindrical Profile Grinding
Includes:
OD Grinding · Plunge Grinding · Step Grinding · Radius and Shoulder Grinding
Used for:
Carbide punches, core pins, stepped shafts, precision pins and cylindrical components with multiple diameters.
Capability:
Cylindrical profile grinding produces stepped diameters, shoulders, radii and complex external contours with precise control of size, roundness and concentricity.
Need Help Choosing the Right Carbide Machining Process?
Send your drawing, CAD file, carbide grade, required quantity and tolerance requirements. Our engineering team will review the part structure and recommend a suitable machining route.
ISO 9001:2015 Certified
100% Dimensional Inspection
Prototype to Production
Custom Carbide Manufacturing
From Drawing to Finished Tungsten Carbide Parts
Goray Carbide machines custom tungsten carbide parts according to your drawings, samples, or technical requirements. From prototypes to repeat production, we support complex geometries, tight tolerances, and demanding surface finishes.
20+ Years of Carbide Machining Experience
Custom carbide machining experience for tooling, wear, mold, gauge, and precision components.
Machined to Your Drawing
Parts are manufactured according to customer drawings, samples, tolerance requirements, and operating conditions.
Complex Geometry Capability
Grinding, Wire EDM, EDM, and CNC machining are combined for micro holes, precision profiles, slender parts, and non-standard geometries.
Prototype to Production
Flexible support for sample validation, small-batch orders, and stable repeat production with consistent dimensional control.
Supporting OEM buyers, tooling manufacturers, engineering teams, and industrial distributors across Europe, North America, and Asia.
Project experience across automotive, tooling, electronics, packaging, mold manufacturing, and industrial wear applications.
Technical Drawing

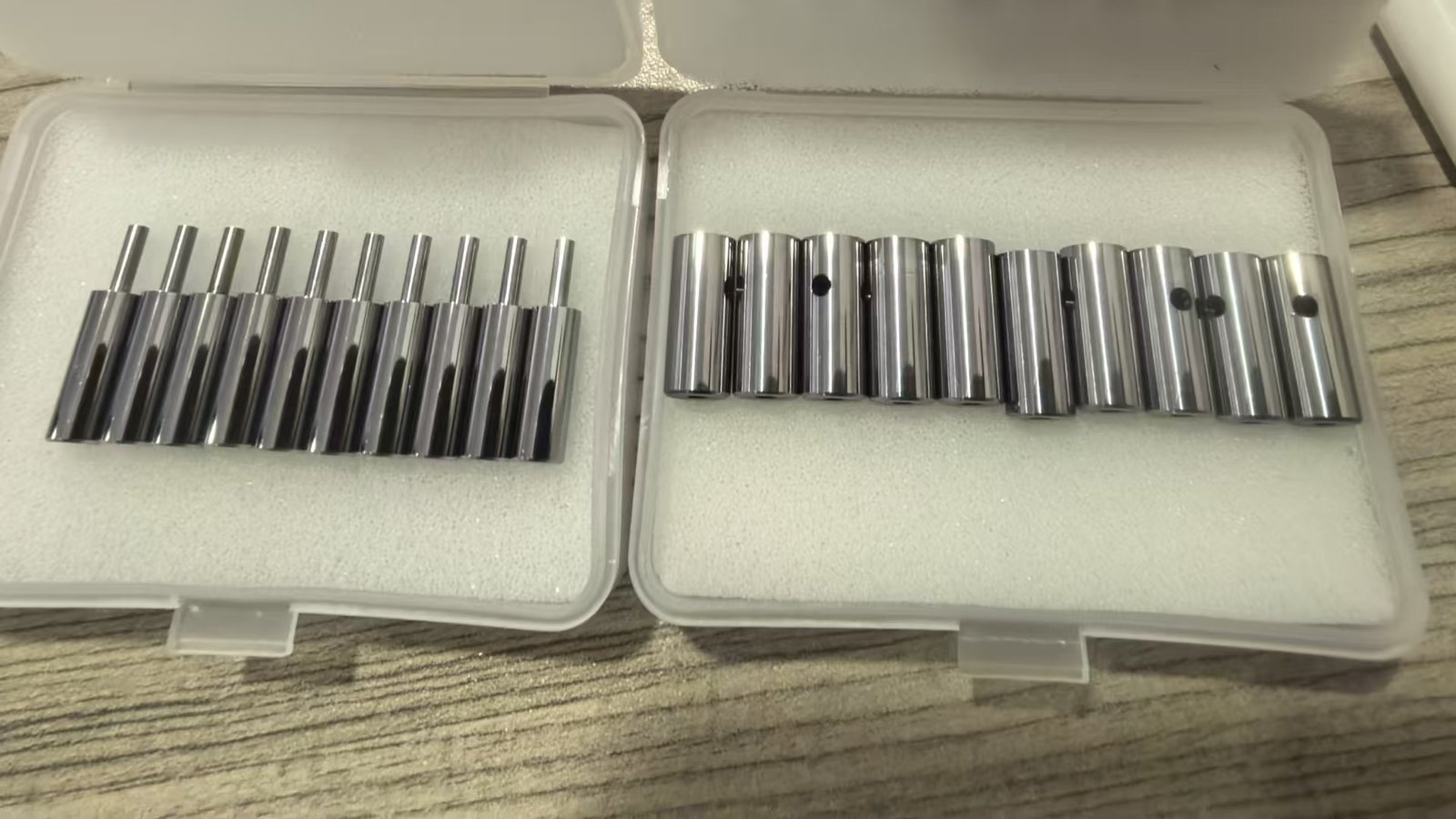

Finished Carbide Part
One drawing. One finished part. Manufactured to your technical requirements.
How Your Custom Carbide Project Works
Our workflow ensures that inspection requirements are agreed upon before quotation, prototype approval occurs before mass production, and repeat orders are produced against approved specifications.
1
Send Your Drawing
Drawing or sample submission followed by engineering, manufacturability, and feasibility review.
2
Engineering Review
Carbide grade selection and detailed process route planning (Grinding, EDM, CNC).
3
Precision Machining
Executing precision machining, grinding, and surface finishing according to the approved plan.
4
Inspection & Delivery
Final dimensional inspection followed by sample approval or full batch shipment.
Engineering Review Before Production
Before machining begins, our engineers review your drawing or sample for carbide grade, critical tolerances, part geometry, grinding and EDM feasibility, process sequence, and inspection requirements. This helps reduce chipping risks, dimensional variation, and avoidable rework.
A
Design for Manufacturability (DFM)
The Situation: A customer provides a drawing for a slender carbide punch, but the length-to-diameter ratio, sharp shoulder transitions, and working-end tolerances present severe risks of deflection and chipping during grinding.
Goray Support: Through our DFM drawing review, we suggest adding specific radii (corner breaks), plan a staged grinding sequence to minimize stress, and agree on specific inspection points. This resolves the manufacturing risk before production begins.
B
Sample Evaluation
The Situation: A buyer only has a worn carbide replacement part from a legacy machine and lacks a complete 2D or 3D drawing.
Goray Support: Available after sample evaluation, we can perform dimensional measurement and structural analysis on the worn component. While not all old parts can be perfectly reverse-engineered, we evaluate the replacement component feasibility and draft a working drawing for approval.
Precision Inspection & Quality Control
Critical dimensions, profiles, concentricity, surface finish, and edge conditions are verified using appropriate measuring equipment. Inspection records and dimensional reports can be provided according to project requirements.

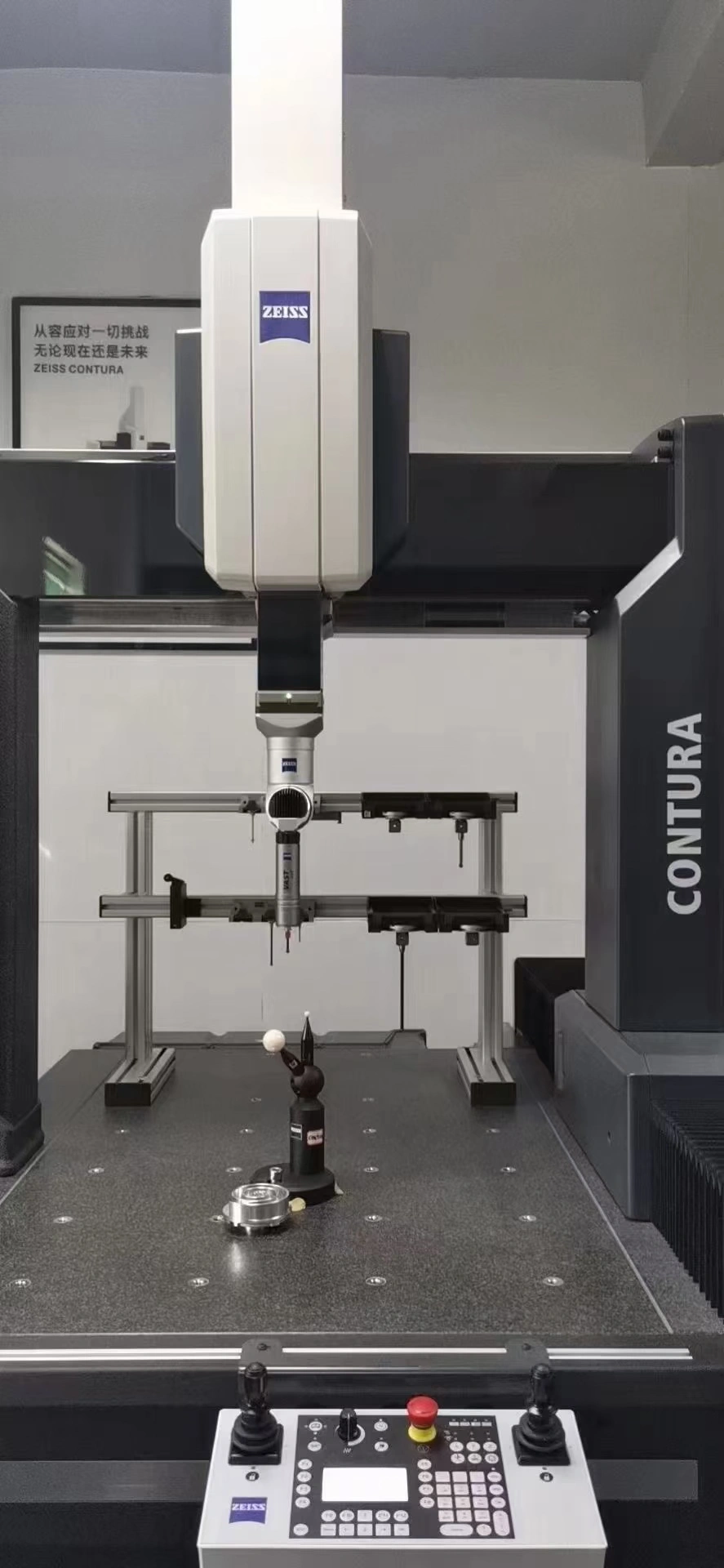

Coordinate Measuring Machine (CMM)
Digital Height Gauge

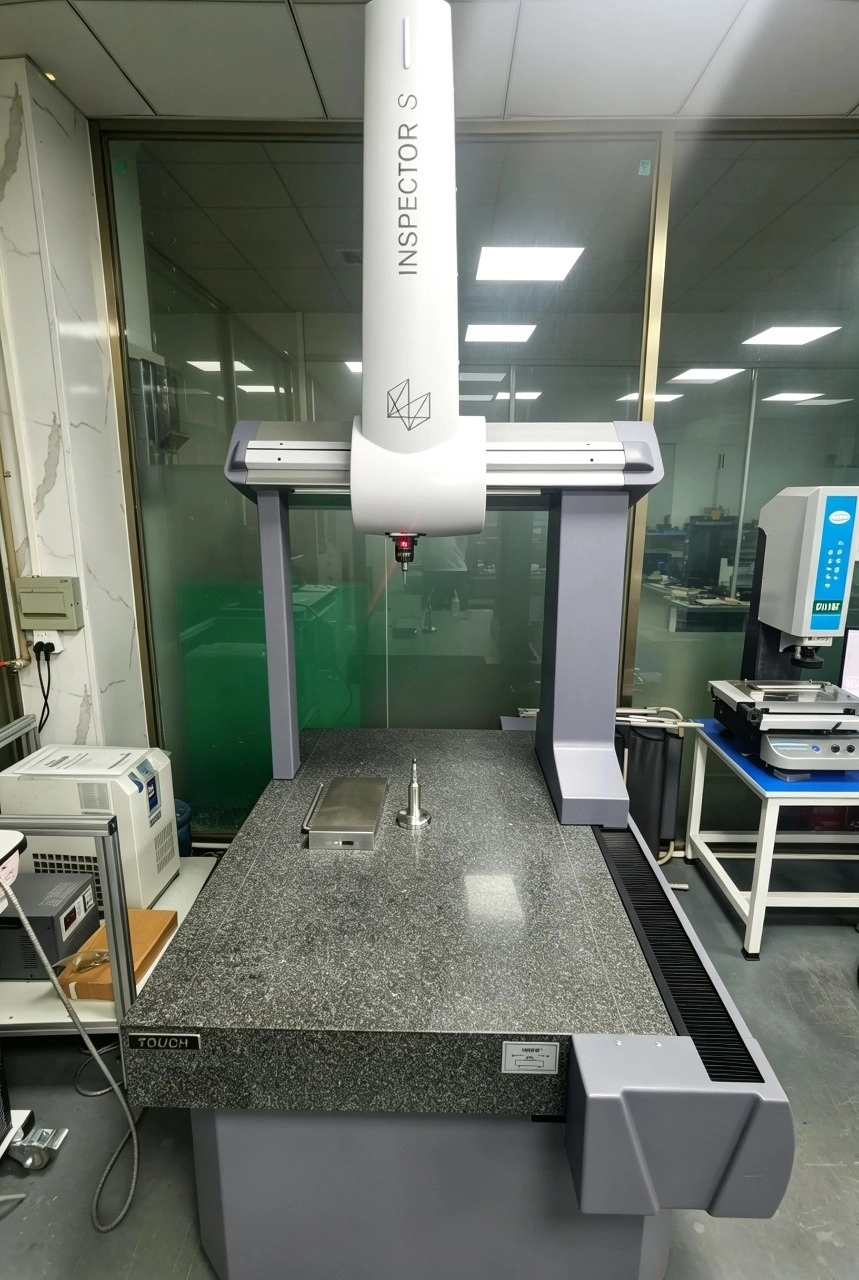

CMM Inspection
Optical Measuring Projector
Video Measuring Machine

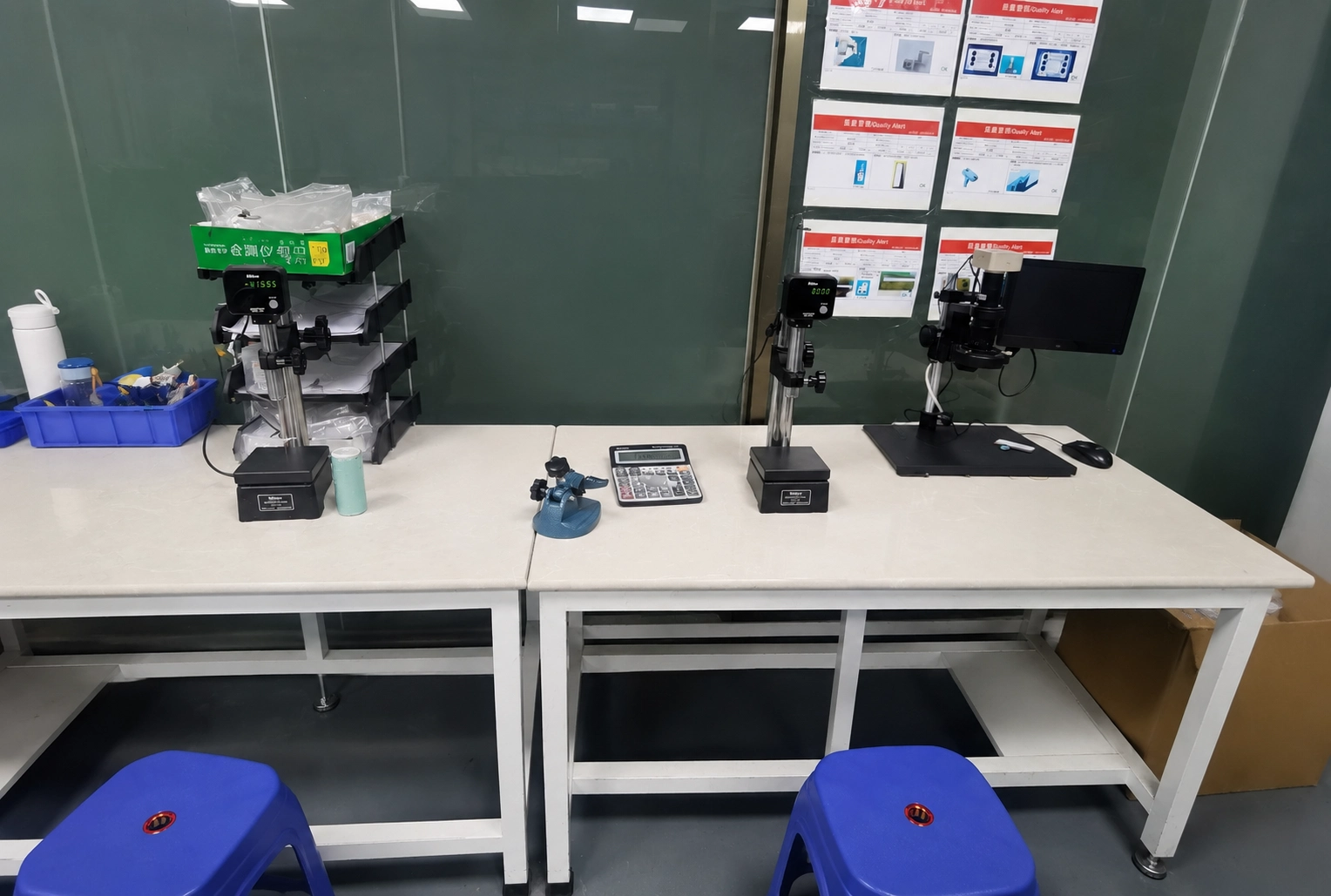

Stereo Microscope for visual check
Custom Precision Carbide Parts Gallery
A selection of real carbide components manufactured according to customer drawings

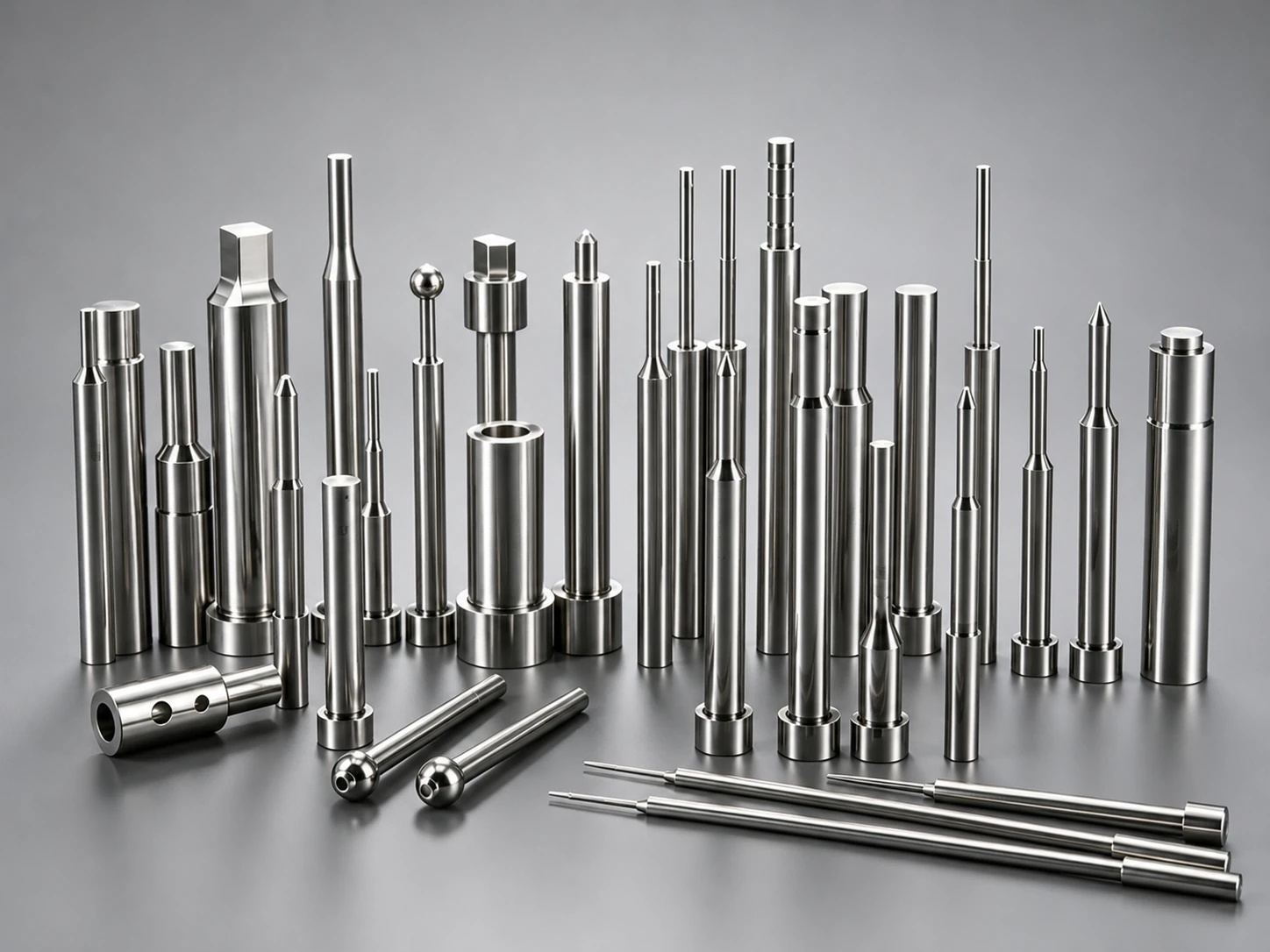

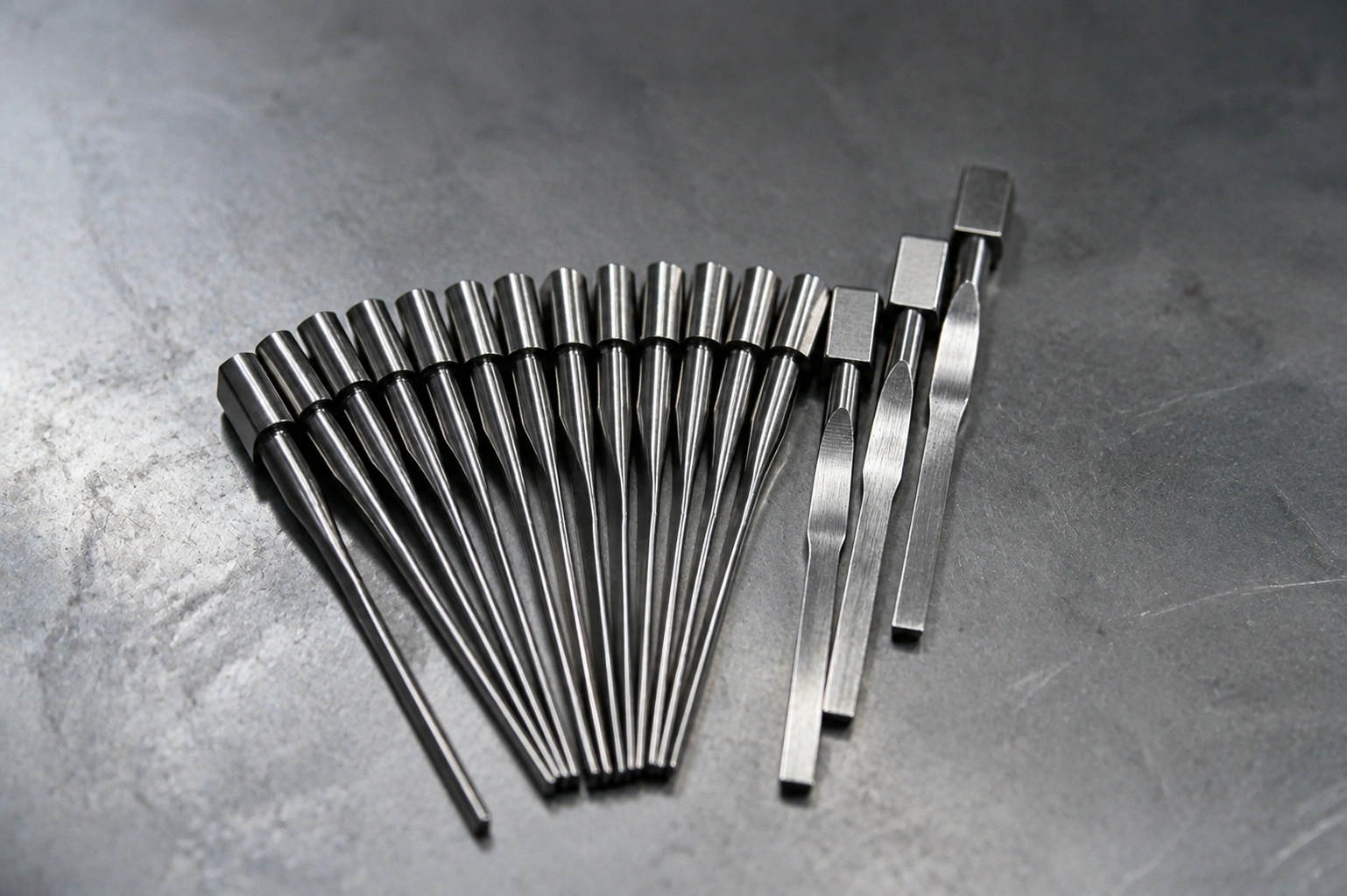

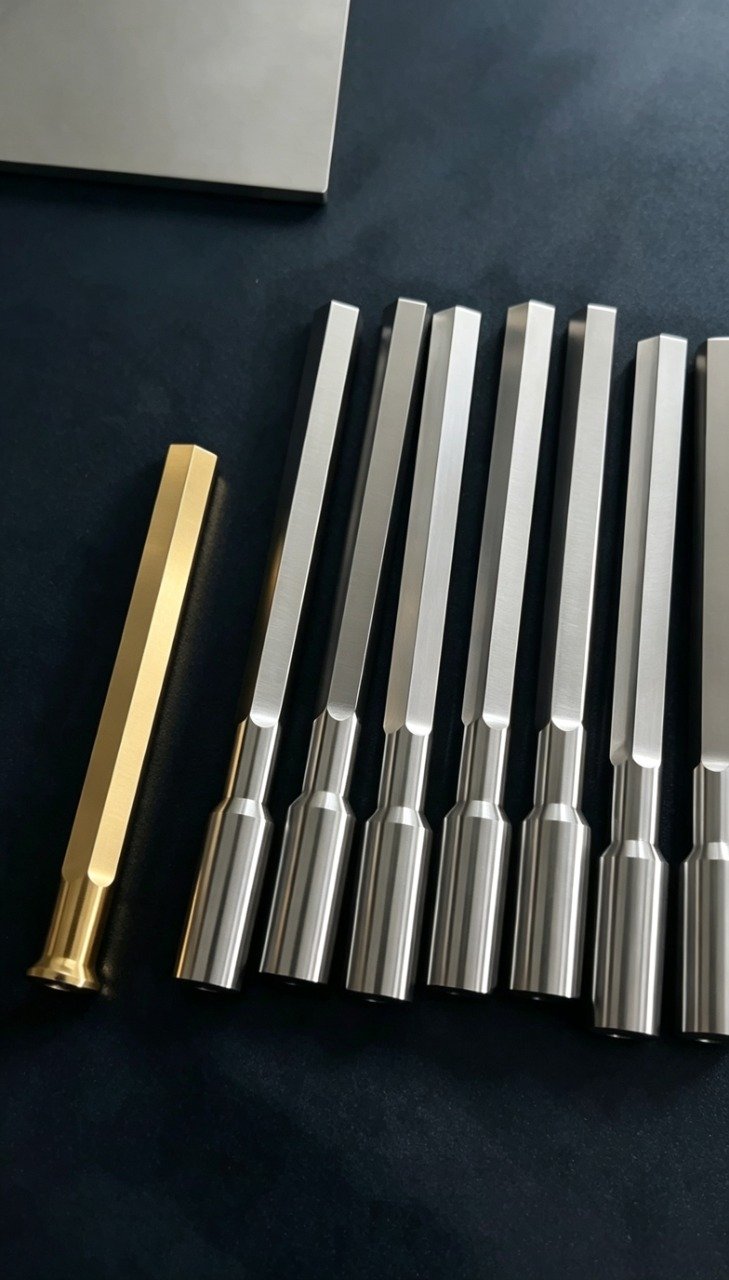

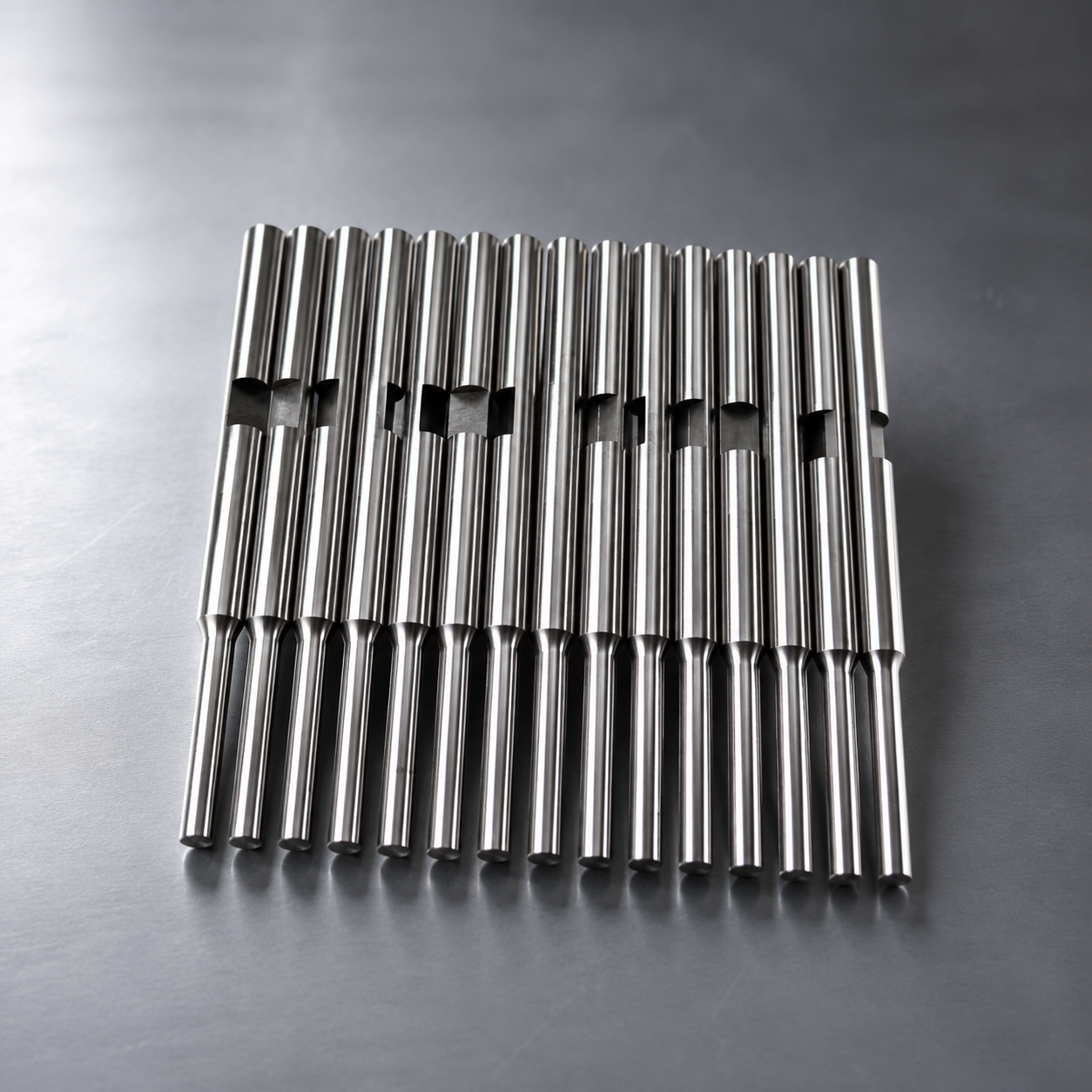

Custom Carbide Punches
Custom Multi-Faceted Carbide Punches
Custom Notched Carbide Punches
Custom Tungsten Carbide Die Ring
Custom TiN-Coated Carbide Punches
Custom Carbide Special-Profile Punches
Tungsten Carbide Square Punch
Tungsten Carbide Step Round Punches
Custom Carbide Complex Components
Our Custom Carbide Machining Process
From CNC machining and Wire EDM to precision grinding and inspection, we manufacture custom tungsten carbide components with strict dimensional control.
GR Carbide
Precision Surface Grinding
Precision surface grinding achieves tight thickness tolerances, flatness and parallelism on carbide plates, inserts and wear components.
GR Carbide
Precision OD Grinding
Precision OD grinding achieves accurate outside diameters, roundness, concentricity and fine surface finishes on carbide pins, punches, shafts and etc.
GR Carbide
CNC Precision Turning
CNC precision turning produces concentric diameters, shoulders, grooves and other rotational features on carbide blanks and carbide-steel components.
GR Carbide
Precision Internal Grinding
Internal grinding delivers precise bore dimensions, concentricity and fine internal surface finishes on carbide components.
GR Carbide
Surface Finishing
Precision surface finishing improves surface roughness, edge quality and dimensional consistency on carbide components.
GR Carbide
Complex Carbide Machining
combines Wire EDM and profile grinding to produce intricate contours, narrow slots, stepped diameters and precision transitions.
GR Carbide
CNC Drilling & Tapping
CNC drilling and tapping produce accurately positioned holes and internal threads with controlled depth, pitch and alignment.
GR Carbide
Precision Surface Grinding
Precision surface grinding controls thickness, flatness, parallelism and surface finish on carbide strips, plates and precision components.
GR Carbide
Sinker EDM Machining
Enables precise machining of complex cavities, deep features and intricate geometries in hardened tungsten carbide without cutting force, ensuring excellent accuracy.
Carbide Machining Range & Achievable Tolerances
The values below represent our general machining capabilities. Final tolerances depend on part size, geometry, carbide grade, feature accessibility, and inspection requirements.
| Capability | Typical Range or Limit | Relevant Parts | Important Notes |
|---|---|---|---|
| Diameter | Ø0.3–300 mm | Punches, pins, bushings, rings | Depends on grinding equipment capacity and blank availability. |
| Part Length | 0.5–500 mm | Long punches, guide shafts, sleeves | Length-to-diameter ratio affects straightness and deflection risk. |
| Tolerance | As tight as ±0.002 mm | Precision gauges, mating components | Subject to part geometry, wall thickness, and inspection methods. |
| Surface Finish | Down to Ra 0.05 μm | Seal rings, sliding surfaces, optical molds | Achieved via secondary lapping and polishing processes. |
| Inspection | Dimensions, straightness, roundness, concentricity | All drawing-based custom parts | Documented against approved drawing requirements. |
| Production | Prototype, trial batch, repeat production | OEM projects, maintenance replacements | Sample approval is recommended before mass production. |
PRECISION MACHINING EQUIPMENT

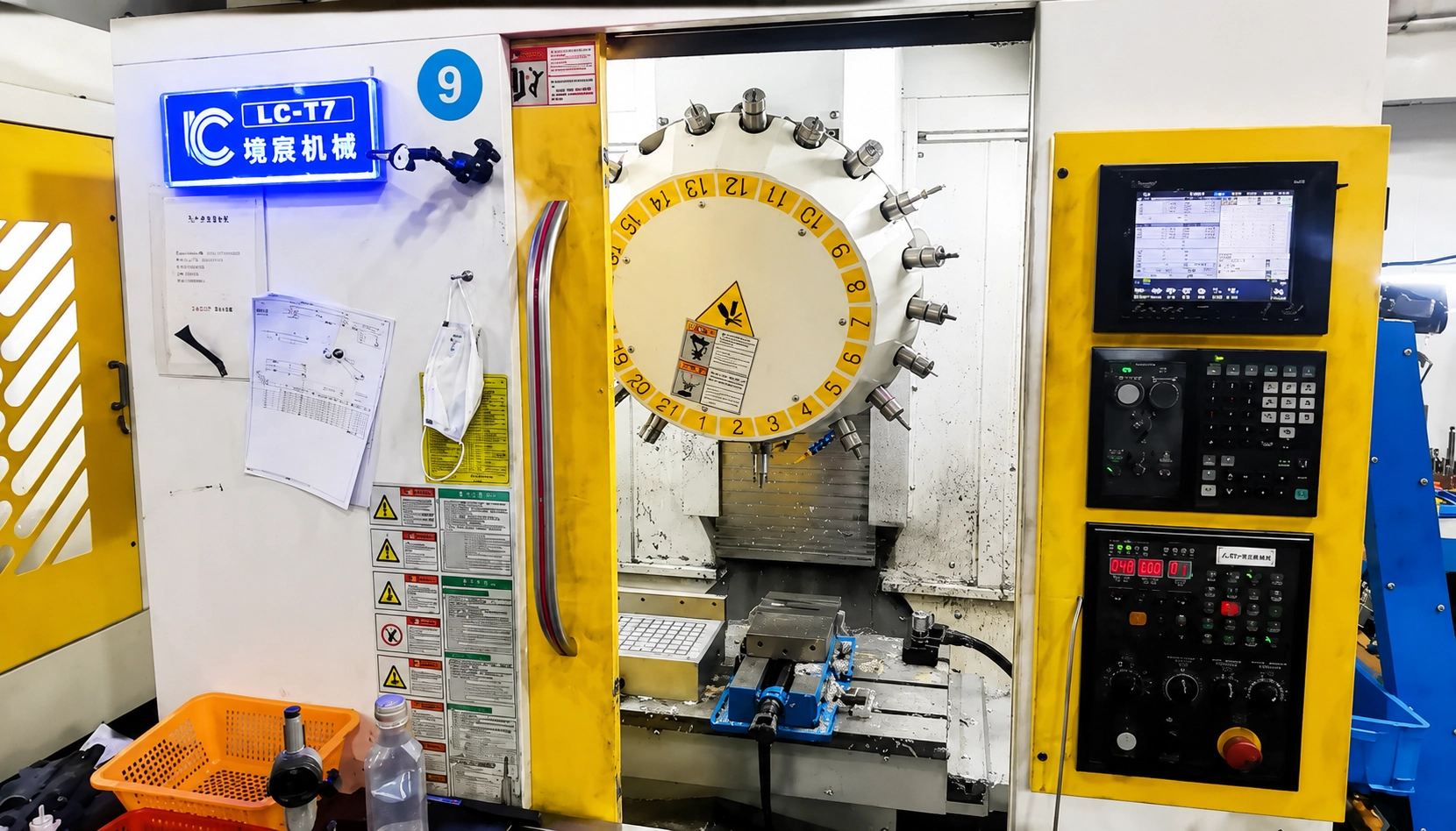

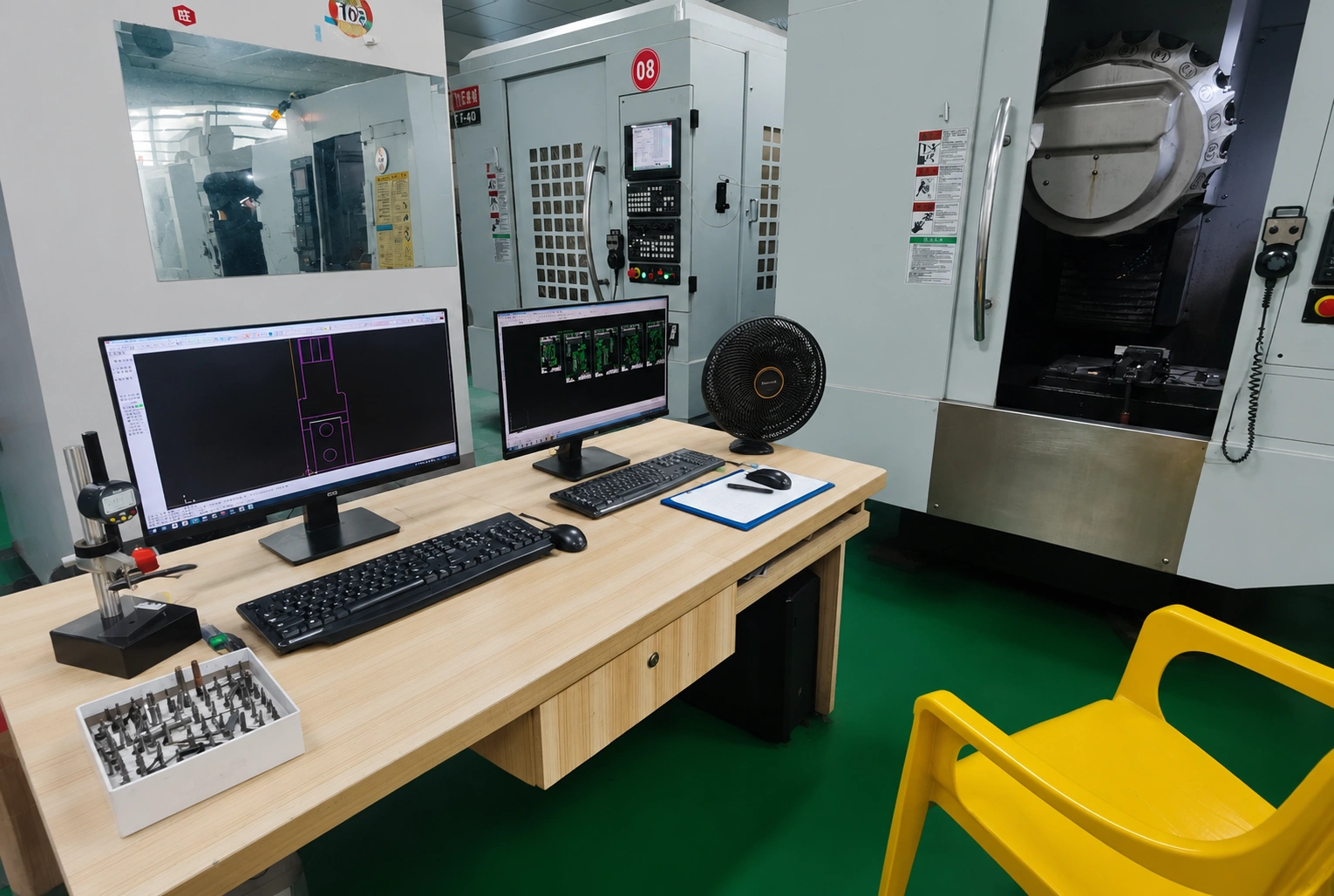

CNC Precision Machining Center
CNC Machining Center
Precision CNC VMC
CNC Drill-tap Machining

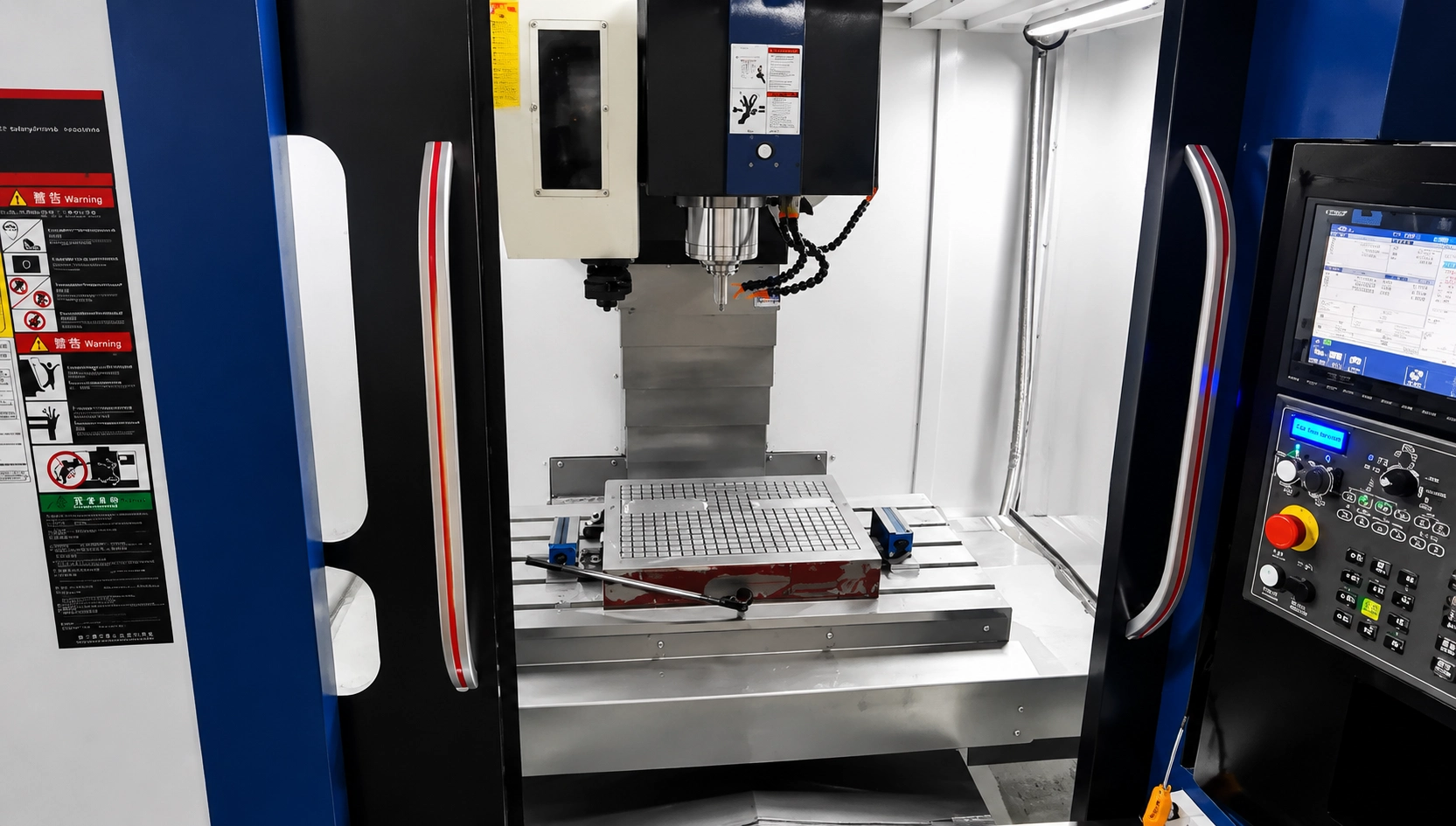

Advanced CNC Machining

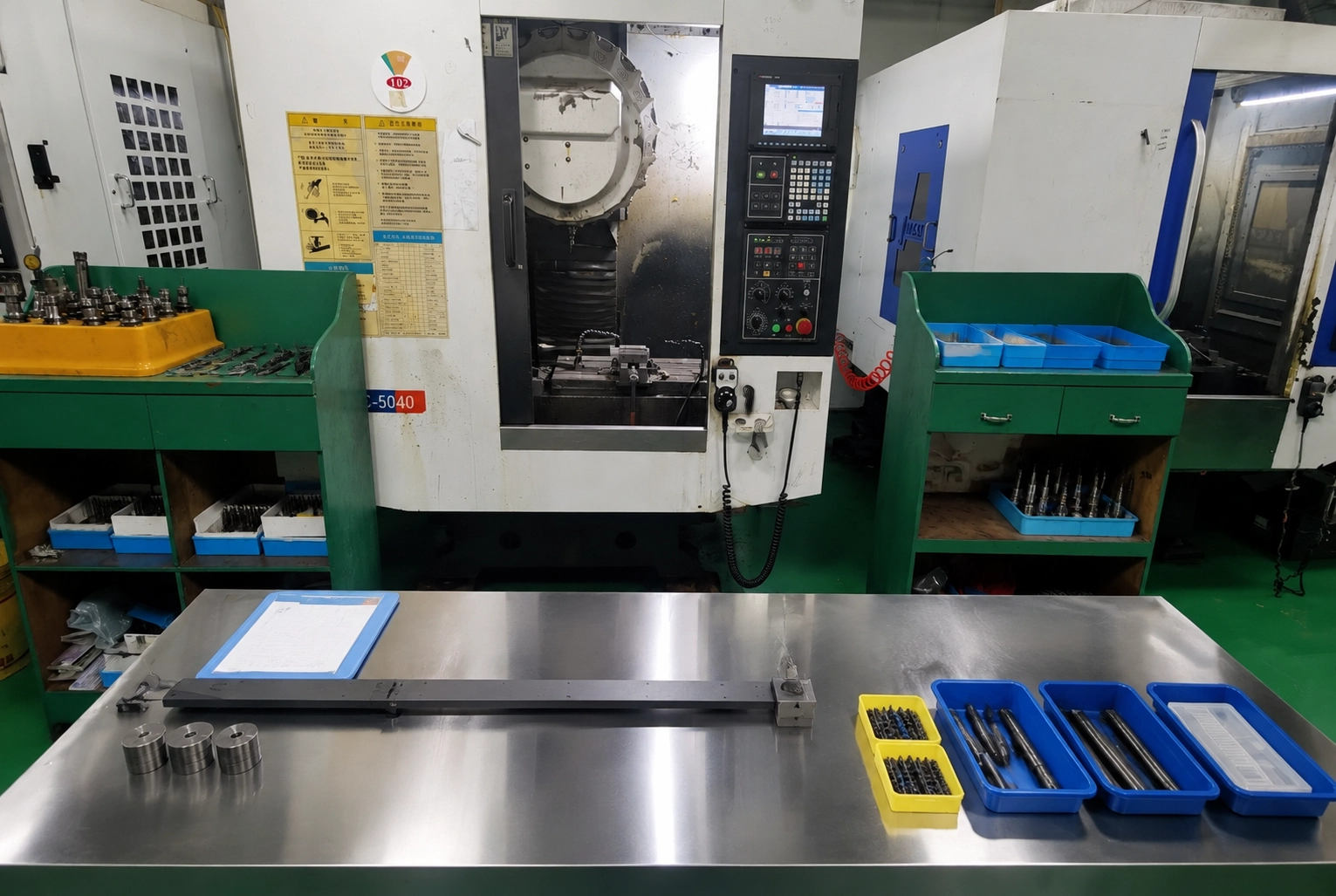

5-Axis CNC Machining

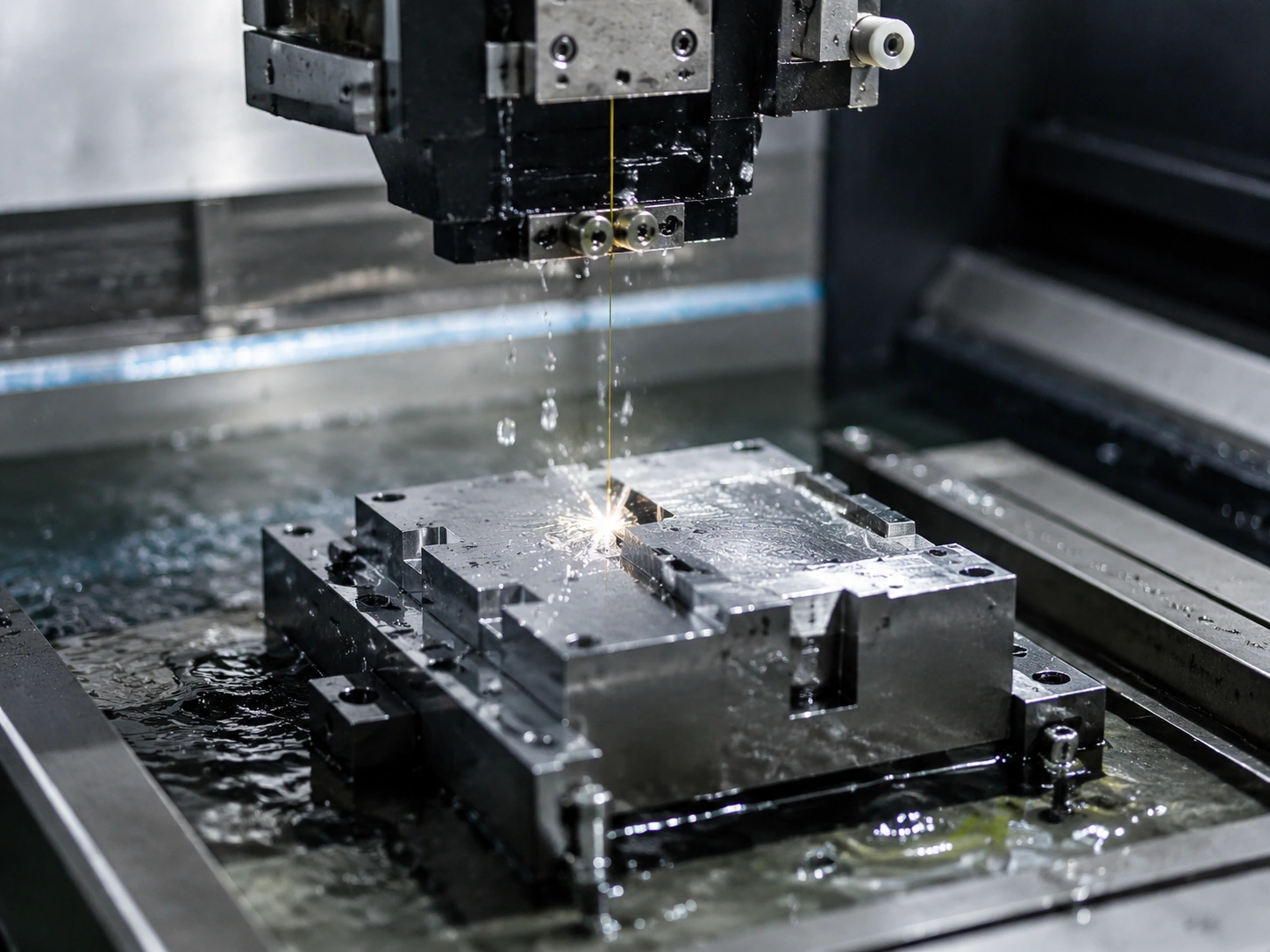

Wire EDM Machining
Wire EDM Machining Lines
Complex Profile Wire EDM

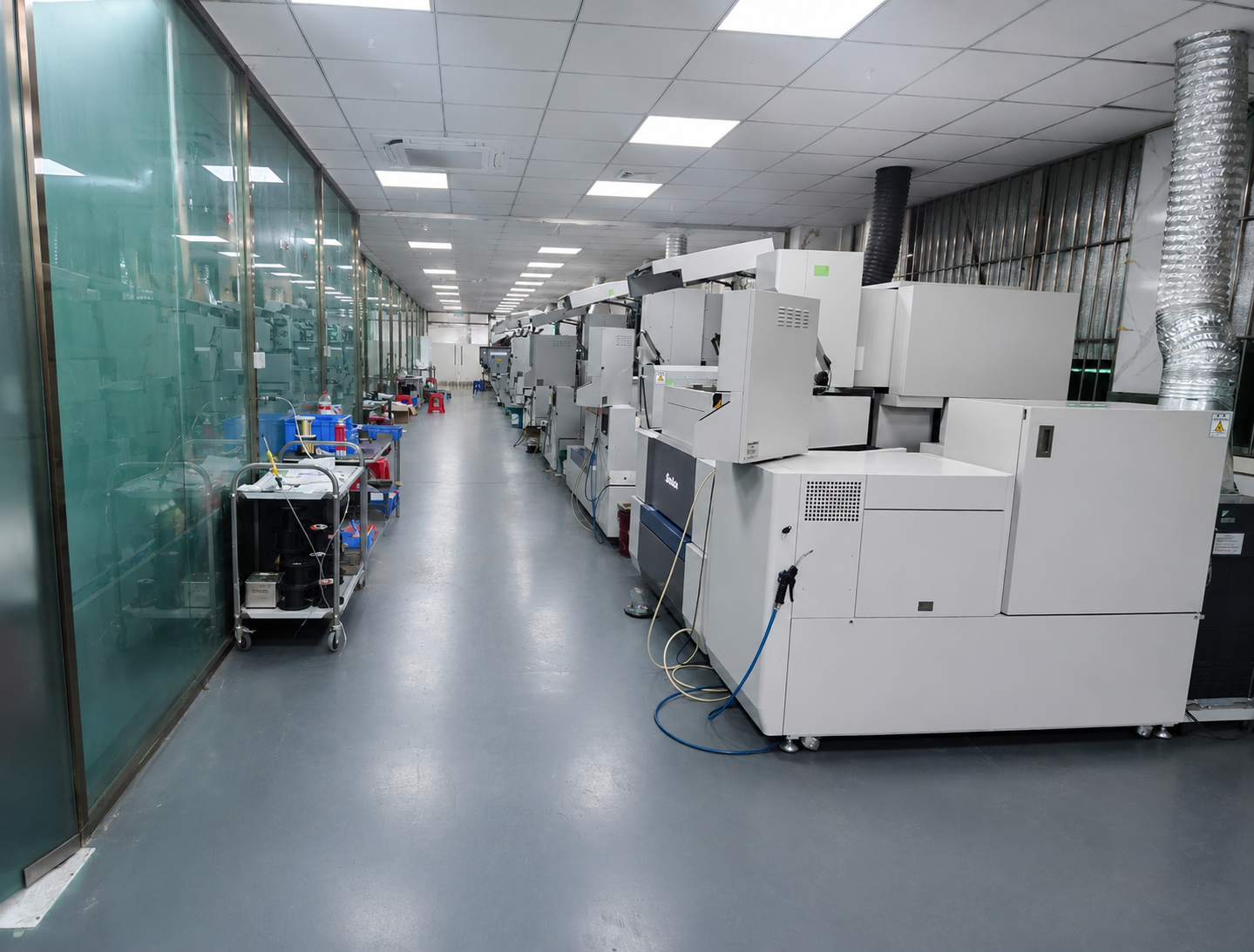

High Precision Wire EDM Machines
Micro Wire EDM Machining

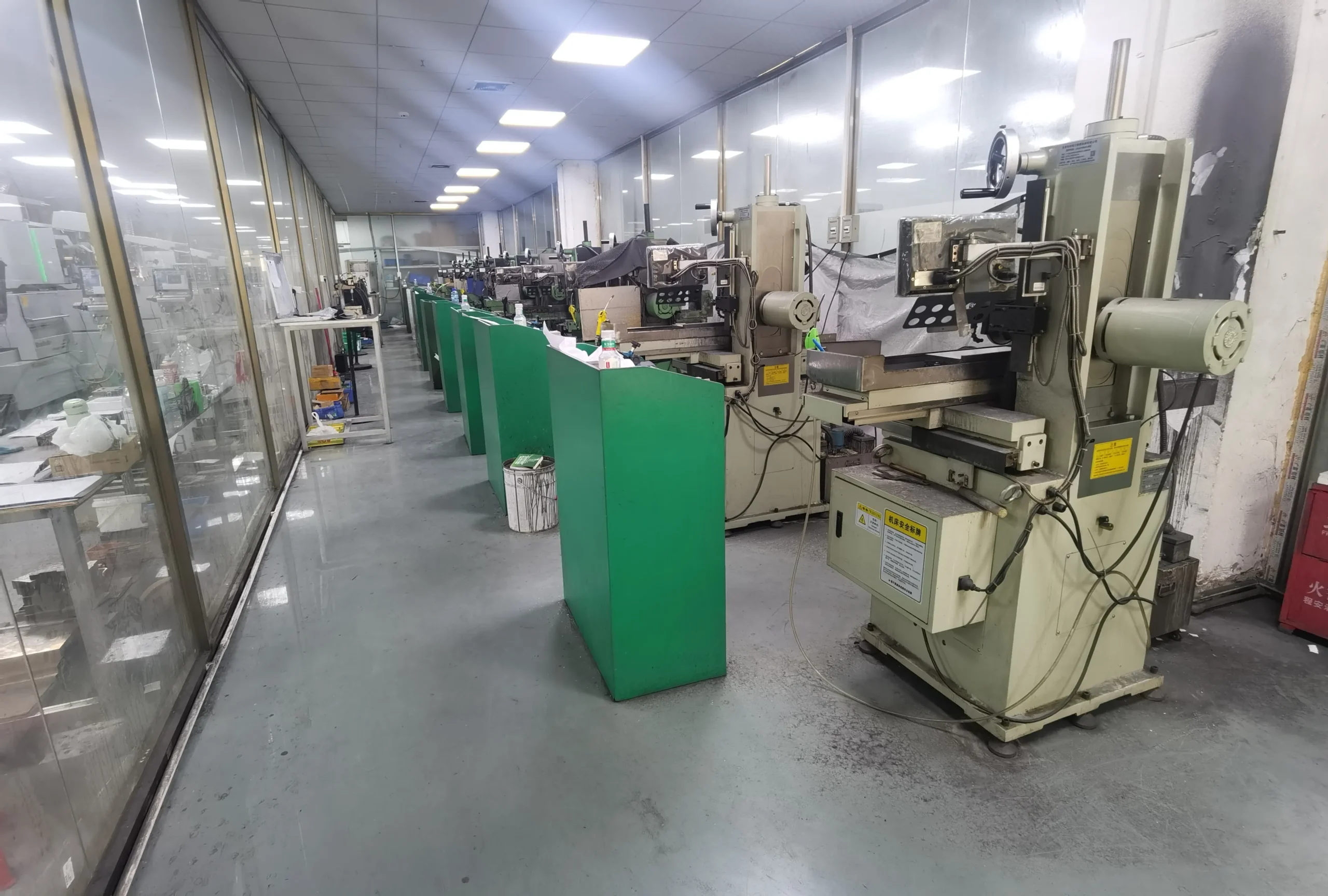

Precision Grinding Production Line
Precision Grinding Machines
Surface Grinding & Finishing
Engineering & Production Support
CNC Programming & Engineering Support
Technical Inspection
Engineering Support & Manufacturing Facility
Engineering support from drawing review to finished carbide components.
Project Communication
Factory Environment
Show Room
Equipment Support
Client Testimonials
Real Feedback from Global Partners
Ready to experience the same level of quality and service?
Global Trade Shows & In-House Carbide Machining
Meet Goray Carbide at international trade shows and take a closer look inside our factory.A trusted custom tungsten carbide manufacturer combining advanced carbide machining, precision grinding, Wire EDM machining,CNC machining, and inspection equipment for global partners.
Manufacturing Facility & Precision Machining
In-House Carbide Machining Capabilities
From drawing review and process planning to precision grinding, Wire EDM, CNC machining, surface finishing, and dimensional inspection, key machining processes are completed within our production facility.
Questions Buyers Ask About Custom Tungsten Carbide Parts
How do I choose a custom tungsten carbide parts manufacturer?
Choose a manufacturer like SHENZHEN GORAY CARBIDE CO., LTD. that focuses on machining from blanks rather than just pressing powder, and ensure they have in-house grinding, EDM, and ISO 9001 dimensional inspection capabilities to meet your drawing requirements.
What information is required for a carbide-part quotation?
To receive an accurate quotation, please provide a 2D or 3D drawing, estimated quantity, required carbide grade (or application details for a recommendation), critical tolerance limits, and required surface finish.
What tolerances can custom tungsten carbide parts achieve?
Precision grinding can achieve tolerances as tight as ±0.002 mm, depending heavily on the part's length, wall thickness, overall geometry, and the chosen inspection method.
Can Goray Carbide support prototypes and small-batch orders?
Yes, we support prototype manufacturing and strongly recommend sample approval before moving to mass production to ensure all drawing specifications and application requirements are met.
How is the correct carbide grade selected?
The correct carbide grade is selected by balancing hardness and toughness based on your specific application, considering factors like abrasive wear, repeated impact, operating load, and corrosive environments.
Which processes are used for complex carbide geometries?
Complex geometries are machined using a combination of precision OD/ID grinding, profile grinding, and Wire EDM to achieve internal cavities, narrow slots, and non-circular profiles.
What affects the production lead time for custom carbide parts?
Production lead time is primarily affected by material blank availability, the complexity of the required grinding and EDM processes, quantity, and specific custom inspection requirements.
How are precision carbide components inspected?
Components are inspected using specialized measuring instruments to verify critical dimensions, straightness, roundness, concentricity, and surface finish against the approved drawing.
Can a worn carbide component be reproduced without a drawing?
Reproduction is available after sample evaluation; we can measure the worn part to draft a new drawing, though reverse-engineering feasibility depends on the extent of the wear and structural damage.
How are customer drawings handled during an OEM project?
Your drawings are strictly used for manufacturing evaluation and internal process planning. NDA support is available upon request to protect your proprietary designs.
Industry-Specific Carbide Solutions
Tungsten Carbide Applications Across Industries
Precision carbide components engineered for demanding applications where wear resistance, accuracy, and durability matter.
Aerospace & Defense
Precision carbide components for aerospace tooling, fixtures, and wear applications.
Typical Carbide Components:- Precision Pins
- Carbide Inserts
- Wear Components
View Applications →
Medical Equipment
Ultra-precision carbide components for medical tooling and manufacturing.
Typical Carbide Components:- Precision Pins
- Punches
- Mold Components
View Applications →
Energy Industry
Durable carbide components for demanding energy equipment applications.
Typical Carbide Components:- Bushings
- Sleeves
- Wear Parts
View Applications →
Automotive
Custom carbide tooling components for automotive forming and production.
Typical Carbide Components:- Punches
- Dies
- Gauges
View Applications →
Mold & Tooling
Carbide mold components designed for repeated cycles and dimensional stability.
Typical Carbide Components:- Core Pin
- Precision Pins
- Tooling Inserts
View Applications →
Oil & Gas
Carbide wear components for abrasive media, pressure, and erosion conditions.
Typical Carbide Components:- Nozzles
- Seal Rings
- Valve Components
View Applications →
Partner With The Right Carbide Machining Factory
Tell us about your custom carbide project needs and upload your drawing or file. We will review it and get back to you as soon as possible！
Contact Information
Need custom tungsten carbide parts made to your drawing? Connect directly with our engineering experts.
Scan to chat with us on WhatsApp for quicker response!
| Made-to-Print Parts| Technical Communication
| Confidential Project Handling| 20+years experience
Nanshan District, Shenzhen China
20 Years Custom Carbide Machining Experience
